Styx & Stones: Faceting Design Diagram
Detailed information on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Styx & Stones".
Tourmaline (Achroite, Dravite, Rubellite, Indicolite, Verdelite, Siberite)

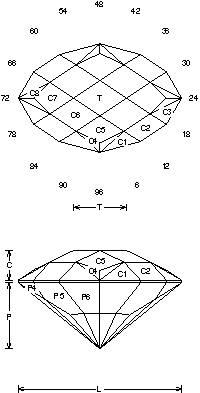

Styx & Stones (CHECK76.JRG)
By Jeff R. Graham
87% Light Return
Angles for R.I. = 1.62
57 facets + 12 facets on girdle = 69
2-fold, mirror-image symmetry
L/W = 1.500 T/W = 0.485 T/L = 0.323
P/W = 0.608 C/W = 0.273
H/W = (P+C)/W+0.02 = 0.901
P/H = 0.675 C/H = 0.303
Vol./W^3 = 0.448
Addition # 8 - This is ideal for lightly saturated rough and has a little different look. Note: The P5 cuts in to meet P1, P4 and P7(G) is cut to meet. Cut in refractive indexes 1.56 (86.7%) to 1.93 with no changes.

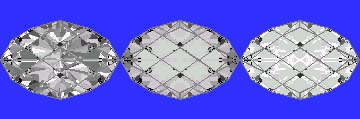

Random - Cosine - ISO
