Sun Rays: Faceting Design Diagram

Successful tips, details and guide on Faceting Designs. Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Sun Rays".


Sunstone (Feldspar, Bytonite, Labradorite, Spectrolite, Orthoclase)

Sun Rays Jeff Graham Facet Design

Sun Rays Jeff Graham Facet Design

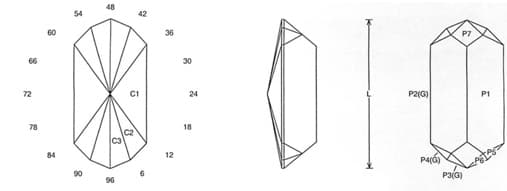

Sun Rays (SUN36.JRG)
By Jeff R. Graham
Copyright 2006
87.2% Light Return
Angles for R.I. = 1.54
22 facets + 10 facets on girdle = 32
2-fold, mirror-image symmetry
96 index
L/W = 2.000 P/W = 0.450 C/W = 0.196
H/W = (P+C)/W+0.02 = 0.667 P/H = 0.675 C/H = 0.295 Vol./W^3 = 0.543



Addition # 11 - Cut in refractive indexes 1.54 to 2.14 with no changes. This is for very shallow material. It will work well in about any material. Note: P3(G), P4(G) are equal in size. The crown may take a little tweaking to make center point.
