Thistle: Faceting Design Diagram

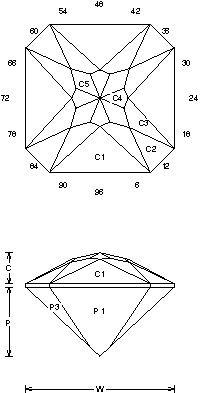

Successful tips, details and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Thistle"


Tourmaline (Achroite, Dravite, Rubellite, Indicolite, Verdelite, Siberite)

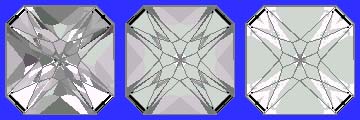

Thistle (MIR5.JRG) Thistle cut in blue/pink bi color Tourmaline
By Jeff R. Graham
Copyright 2004
90.4% Light Return
Angles for R.I. = 1.62
32 facets + 8 facets on girdle = 40
4-fold, mirror-image symmetry
96 index
L/W = 1.000 P/W = 0.466 C/W = 0.209
H/W = (P+C)/W+0.02 = 0.695
P/H = 0.671 C/H = 0.300
Vol./W^3 = 0.251

Addition # 9 - Note: The P3 cuts just short of center, by varying this tier you will notice that the scissor reflections on the crown will change. This is easy, very fast to cut and works well in any material. I especially like it in Garnets. Cut in refractive indexes 1.62 to 1.93 with no changes.
