Trip’in: Faceting Design Diagram

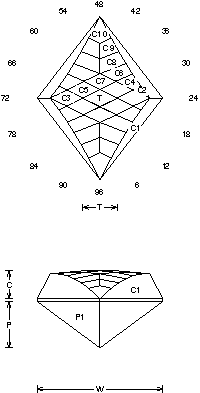

Successful tips, details and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Trip'in"
Tourmaline (Achroite, Dravite, Rubellite, Indicolite, Verdelite, Siberite)
By Jeff R. Graham
Copyright 2003 84.3%
Light return Angles for R.I. = 1.62
39 facets + 4 facets on girdle = 43
2-fold, mirror-image symmetry
L/W = 1.303 T/W = 0.273 T/L = 0.209
P/W = 0.370 C/W = 0.222
H/W = (P+C)/W+0.02 = 0.612
P/H = 0.604 C/H = 0.363
Vol./W^3 = 0.194
Addition # 8 - This needs to be cut in a large stone and can be cut in another order. Notice that I cut the center first and go towards the edges. This is because there are no critical meets at 96-48 and these facets can absorb any slack that you might have. Also this can be cut in variable L/W, just let the outside facets absorb the difference by being larger or smaller. This can be cut in Quartz with no changes 81.2% to 2.14 (85.3%).

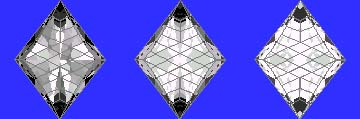

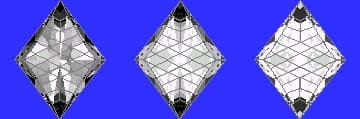

Random - Cosine - ISO
Detailed faceting instructions by Jeff Graham available at The Rock Peddler
Jeff R. Graham
The late Jeff Graham was a prolific faceter, creator of many original faceting designs, and the author of several highly-regarded instructional faceting books such as Gram Faceting Designs.
