Tut’s Crystal Glitter: Faceting Design Diagram

Helpful tips and guide on Faceting Designs. Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Tut's Crystal Glitter"


Tourmaline (Achroite, Dravite, Rubellite, Indicolite, Verdelite, Siberite)

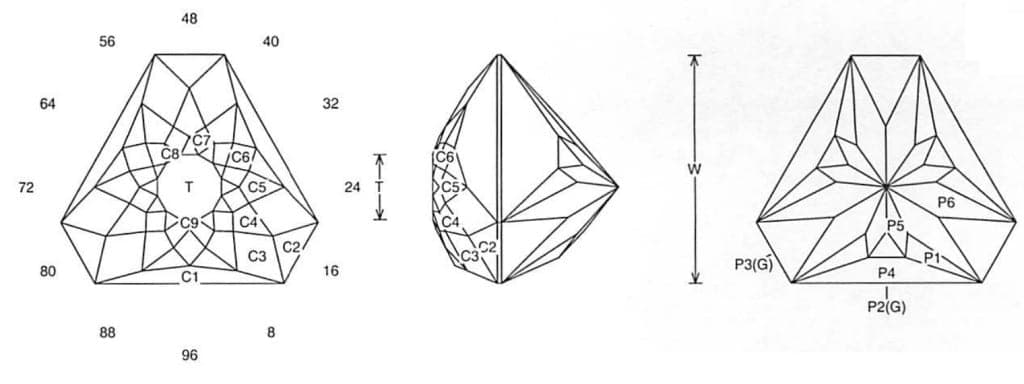

Tuts Crystal Glitter_jeff_graham_facet_design1Tuts Crystal Glitter_jeff_graham_facet_design2

Tut's Crystal Glitter (MC125.JRG)
By Jeff R. Graham
Copyright 2006
73.6% Light Return
Angles for R.I. = 1.62
82 facets + 6 facets on girdle = 88
3-fold, mirror-image symmetry
96 index
L/W = 1.155 T/W = 0.287 T/L = 0.248 P/W = 0.528
C/W = 0.291 H/W = (P+C)/W+0.02 = 0.838 P/H = 0.629 C/H = 0.347 Vol./W^3 = 0.319



Addition # 12 - Cut in refractive indexes 1.62 to 2.14 with no changes. This is good for light to medium saturations and I like it in light colored Tourmaline. It is not hard to cut and makes a striking stone.

Tuts Crystal Glitter_jeff_graham_facet_design3


Detailed faceting instructions by Jeff Graham available at The Rock Peddler

Jeff R. Graham

The late Jeff Graham was a prolific faceter, creator of many original faceting designs, and the author of several highly-regarded instructional faceting books such as Gram Faceting Designs.
