“U” Rect: Faceting Design Diagram
Details and information on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts and facets suitable for different gems.
Tourmaline (Achroite, Dravite, Rubellite, Indicolite, Verdelite, Siberite)

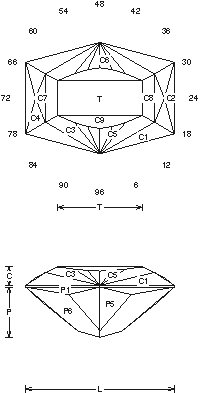

"U" Rect (TLINE48.JRG)
By Jeff R. Graham
82.3% Light Return
Angles for R.I. = 1.62
47 facets + 6 facets on girdle = 53
2-fold, mirror-image symmetry
L/W = 1.330 T/W = 0.758 T/L = 0.570
P/W = 0.451 C/W = 0.166
H/W = (P+C)/W+0.02 = 0.636
P/H = 0.708 C/H = 0.260
Vol./W^3 = 0.310
Addition # 3 - The 39 degree tier on the Pavilion are below the critical angle for 1.54, but because of the L/W on this cut it works in Quartzs also. This is a good cut for about any material and is not very hard, 1-12cts.

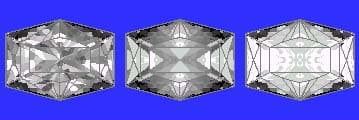

Random - Cosine - ISO
