Peridot

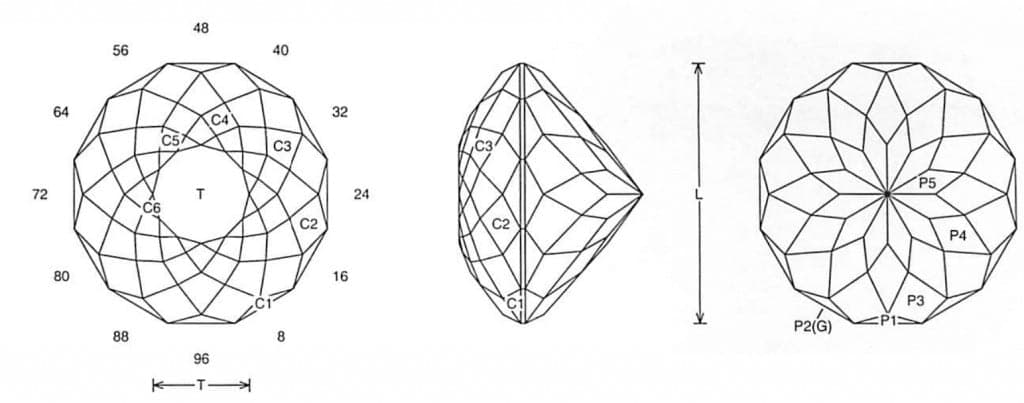

12 Glitter Jeff Graham Facet Design\12 Glitter Jeff Graham Facet Design

12 Glitter (MC92.JRG)
By Jeff R. Graham
Copyright 2006

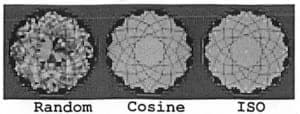

80.6% Light Return
Angles for R.I. = 1.67
121 facets + 12 facets on girdle = 133
12-fold, mirror-image symmetry
96 index

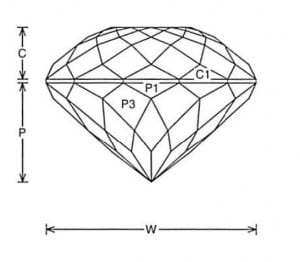

L/W = 1.000 T/W = 0.382 T/L = 0.382 P/W = 0.465
C/W = 0.243 H/W = (P+C)/W+0.02 = 0.728 P/H = 0.639 C/H = 0.334 Vol./W^3 = 0.281

PAVILION

CROWN



Addition # 12 - Cut in refractive indexes 1.67 to 2.14 with no changes. This is fun to cut and is 12 sided which is a little unusual. It works well in any light to medium saturated material. Note: The girdle can be cut first then meet P1 to it to save rough.

12 Glitter Jeff Graham Facet Design

Detailed faceting instructions by Jeff Graham available at The Rock Peddler


Jeff R. Graham

The late Jeff Graham was a prolific faceter, creator of many original faceting designs, and the author of several highly-regarded instructional faceting books such as Gram Faceting Designs.
