Aztec Eye: Faceting Design Diagram

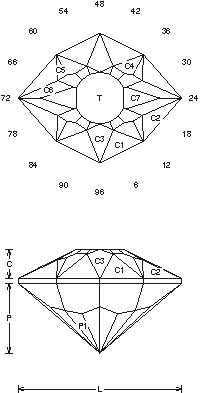

Detailed information and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Aztec Eye".

0

Quartz (Amethyst, Citrine, Ametrine, Smokey, Rose)

Aztec Eye (B7.JRG) 1.53 carat Citrine
By Jeff R. Graham
Copyright 2001
81.8% Light Return
Angles for R.I. = 1.54
61 facets + 8 facets on girdle = 69
2-fold, mirror-image symmetry
96 index
L/W = 1.257 T/W = 0.398 T/L = 0.317
P/W = 0.536 C/W = 0.224
H/W = (P+C)/W+0.02 = 0.780
P/H = 0.687 C/H = 0.287
Vol./W^3 = 0.301

Addition # 5 - This is rather nice and it's not hard to cut. NOTE: C6 tier is a little confusing until you see it cut in. The only places it actually meets the girdle is at the corners. For the rest of the tier, just cut at the same mast height, and let them float. This works in almost any material R.I. 1.54 to 1.76 (88%) with no changes.


Random - Cosine - ISO
