Crystal Trig Glitter: Faceting Design Diagram


Successful tips and guide on Faceting Designs. Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called Crystal Trig Glitter

0

Tourmaline (Achroite, Dravite, Rubellite, Indicolite, Verdelite, Siberite)

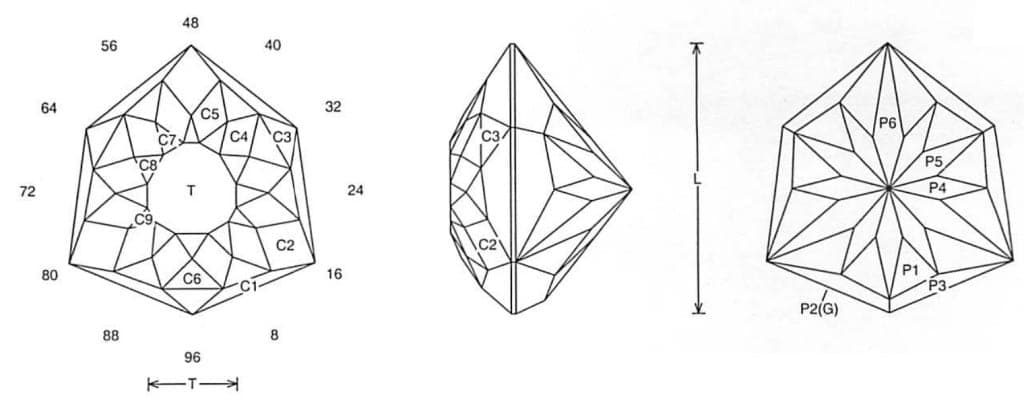

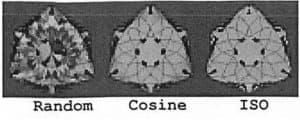

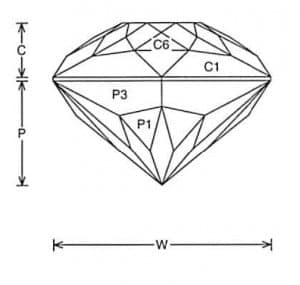

Crystal Trig Glitter Jeff Graham Facet DesignCrystal Trig Glitter Jeff Graham Facet Design

Crystal Trig Glitter (MC111.JRG)
By Jeff R. Graham
Copyright 2006
84% Light Return
Angles for R.I. = 1.62
76 facets + 6 facets on girdle = 82
3-fold, mirror-image symmetry
96 index
L/W = 1.073 T/W = 0.364 T/L = 0.339 P/W = 0.478
C/W = 0.246 H/W = (P+C)/W+0.02 = 0.744 P/H = 0.643 C/H = 0.330 Vol./W^3 = 0.277

PAVILION

CROWN

Addition # 12 - Cut in refractive indexes 1.62 to 2.14 with no changes. I designed this Trig variation for Aquamarine or any light to medium saturated material. This works in Quartz (41 degrees) although the performance is a little lower (74.8%). Note: C2 tier only meets the girdle at the corners, cutting the tier center point is the easiest way to have even facets.
