Diamond Perception: Faceting Design Diagram
Successful tips and guide on Faceting Designs. Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Diamond Perception"
Quartz (Amethyst, Citrine, Ametrine, Smokey, Rose)

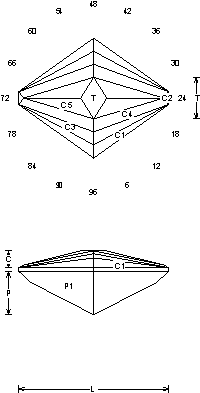

Diamond Perception (MC73.JRG)
By Jeff R. Graham
Copyright 2002
84.6% Light Return
Angles for R.I. = 1.54
25 facets + 6 facets on girdle = 31
2-fold, mirror-image symmetry
96 index
L/W = 1.330 T/W = 0.347 T/L = 0.261
P/W = 0.361 C/W = 0.141
H/W = (P+C)/W+0.02 = 0.522
P/H = 0.692 C/H = 0.270
Vol./W^3 = 0.167
Addition # 7 - This works great for long Tourmaline crystals, slice them on the diagonal. It moves the "c" axis off center and will yield well, plus by using the same crystal you will get a matched set. The reflections will alternate depending on the "c" axis. If it is a dark "c" then you Will have light and dark sides if you cut on the diagonal. If the "c" is ugly leave them on the 24-72 indexes and minimize the color.
Random - Cosine - ISO
Detailed faceting instructions by Jeff Graham available at The Rock Peddler
Jeff R. Graham
The late Jeff Graham was a prolific faceter, creator of many original faceting designs, and the author of several highly-regarded instructional faceting books such as Gram Faceting Designs.
