Dutch Winds: Faceting Design Diagram


Detailed information and guide on Faceting Designs. Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Dutch Winds".

0

Tourmaline (Achroite, Dravite, Rubellite, Indicolite, Verdelite, Siberite)

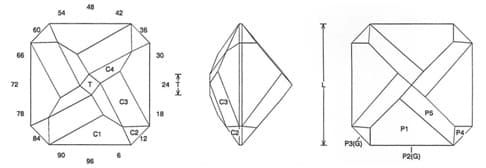

Jeff Graham Facet Design

Jeff Graham Facet Design

Dutch Winds (MIR47.JRG)

By Jeff R. Graham
Copyright 2005
90.4% Light Return
Angles for R.I. = 1.62
29 facets + 8 facets on girdle = 37
4-fold symmetry
96 index
L/W = 1.000 T/W = 0.172 T/L = 0.172 P/W = 0.422
C/W = 0.248 H/W = (P+C)/W+0.02 = 0.690 P/H = 0.612 C/H = 0.359 Vol./W^3 = 0.266

PAVILION

CROWN

Addition # 10 - Note: The corners on this design float. Cut them in to look right. You can vary the blades by changing the corner size. This is very nice in light to medium saturated materials and is again great for earrings. A table is not needed for small stones. Cut in refractive indexes 1.62 to 1.76 with no changes.
