Easy Emerald Checker: Faceting Design Diagram

Information and guide on Faceting Designs. Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Easy Emerald Checker".


Quartz (Amethyst, Citrine, Ametrine, Smokey, Rose)

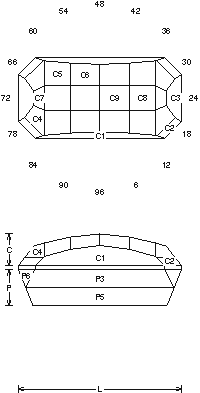

Easy Emerald Checker (CHECK15.JRG)
By Jeff R. Graham
Copyright 2001
84.6% Light Return
Angles for R.I. = 1.54
36 facets + 8 facets on girdle = 44
2-fold, mirror-image symmetry
96 index
L/W = 2.023 P/W = 0.450 C/W = 0.394
H/W = (P+C)/W+0.02 = 0.864
P/H = 0.521 C/H = 0.456
Vol./W^3 = 0.971

Addition # 6 - Notice that the crown on this design floats… This is to give the faceter the option to cut a deeper or shallower crown (depending on the rough) on the fly. On a shallow stone C2 can be left off and just cut C4 to meet the girdle. This is ideal for dark "c" axis Tourmaline, especially if the crown is lowered.
