Spice: Faceting Design Diagram


Successful tips, details and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Spice".

0

Quartz (Amethyst, Citrine, Ametrine, Smokey, Rose)

Spice Jeff Graham Facet Design1Spice Jeff Graham Facet Design2

Spice (BEAD29.GEM)
By Jeff R. Graham
Copyright 2007
Angles for R.I. = 1.54
288 facets
16-fold, mirror-image symmetry
96 index
L/W = 1.000
H/W = 0.979
Vol./W^3 = 0.429

PAVILION

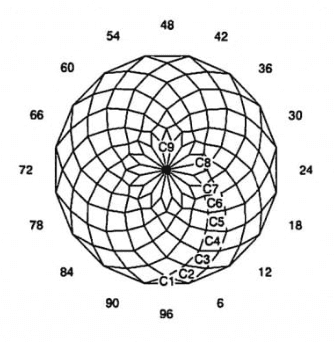

CROWN

Addition # 14 - NOTE: A temporary girdle can be cut using the P1 settings. This is not hard to cut but takes some work. Lightly saturated material work best.

Detailed faceting instructions by Jeff Graham available at The Rock Peddler


Jeff R. Graham

The late Jeff Graham was a prolific faceter, creator of many original faceting designs, and the author of several highly-regarded instructional faceting books such as Gram Faceting Designs.
