Faceting Design Diagram: Tut’s Glitter – Peridot


Peridot

Tuts Glitter Jeff Graham Facet Design Tuts Glitter Jeff Graham Facet Design



Tut’s Glitter (MC124.JRG)
By Jeff R. Graham
Copyright 2006

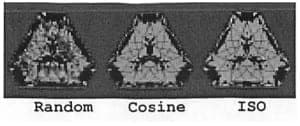

70.2% Light Return
Angles for R.I. = 1.67
94 facets + 6 facets on girdle = 100
3-fold, mirror-image symmetry
96 index

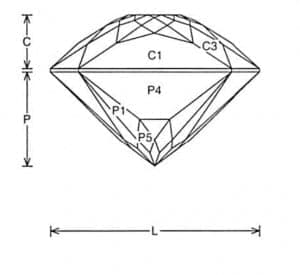

L/W = 1.155 T/W = 0.287 T/L = 0.248 P/W = 0.517
C/W = 0.291 H/W = (P+C)/W+0.02 = 0.828 P/H = 0.625 C/H = 0.351 Vol./W^3 = 0.320

Addition # 12 – Cut in refractive indexes 1.67 to 2.14 with no changes. This is very nice and works best in light saturations. It is designed for Peridot, but works well in light Garnets, Sapphires, and Zircons.

Tuts Glitter Jeff Graham Facet Design



Detailed faceting instructions by Jeff Graham available at The Rock Peddler
