Glitter: Faceting Design Diagram

Successful tips and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Glitter".


Tourmaline (Achroite, Dravite, Rubellite, Indicolite, Verdelite, Siberite)

Glitter Jeff Graham Facet DesignGlitter Jeff Graham Facet Design

Glitter (MC85.JRG)
By Jeff R. Graham
Copyright 2003

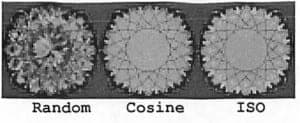

80.7% Light Return
Angles for R.I. = 1.62

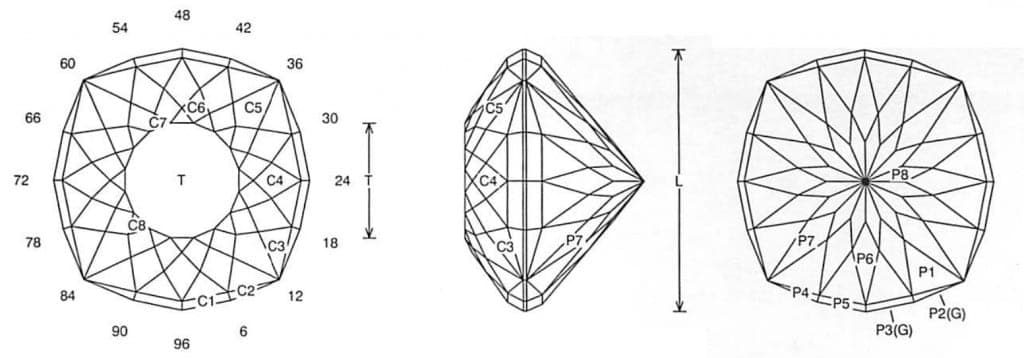

145 facets + 16 facets on girdle = 161
4-fold, mirror-image symmetry
96 index

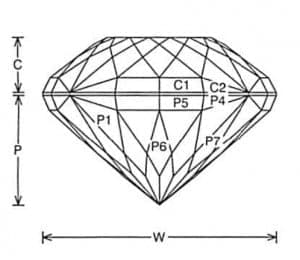

L/W = 1.000 T/W = 0.443 T/L = 0.443 P/W = 0.462
C/W = 0.230 H/W = (P+C)/W+0.02 = 0.712 P/H = 0.648 C/H = 0.324 Vol./W^3 = 0.264



Addition # 12 - It helps to cut the table in before cutting C7. This is not hard to cut, just a lot of work. Cut this in refractive indexes 1.62 to 2.14 (89.2%) with no changes.

Glitter Jeff Graham Facet Design

Detailed faceting instructions by Jeff Graham available at The Rock Peddler

Jeff R. Graham

The late Jeff Graham was a prolific faceter, creator of many original faceting designs, and the author of several highly-regarded instructional faceting books such as Gram Faceting Designs.
