Hexed Crystal Glitter: Faceting Design Diagram

Tourmaline (Achroite, Dravite, Rubellite, Indicolite, Verdelite, Siberite)

Hexed Crystal Glitter (MC121.JRG)
By Jeff R. Graham
Copyright 2006

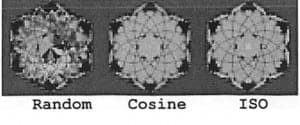

80.7% Light Return
Angles for R.I. = 1.62
109 facets + 6 facets on girdle = 115
12-fold, mirror-image symmetry
96 index
L/W = 1.155 T/W = 0.336 T/L = 0.291 P/W = 0.576
C/W = 0.215 H/W = (P+C)/W+0.02 = 0.811 P/H = 0.710 C/H = 0.265 Vol./W^3 = 0.360

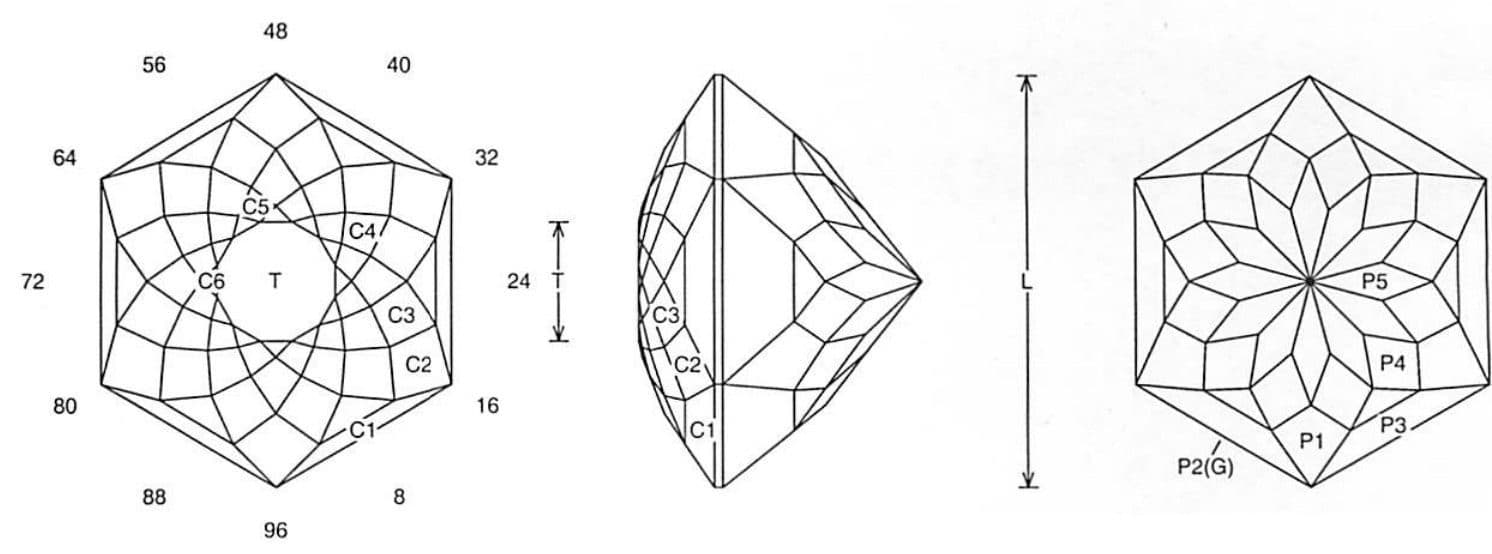

PAVILION

CROWN

Addition # 12 - Cut in refractive indexes 1.62 to 2,14 with no changes. This works well in light to medium saturated materials. It is very nice in sapphires and Zircons.

Detailed faceting instructions by Jeff Graham available at The Rock Peddler
