Hexed "T": Faceting Design Diagram


Successful tips and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Hexed "T" ".

0

Tourmaline (Achroite, Dravite, Rubellite, Indicolite, Verdelite, Siberite)

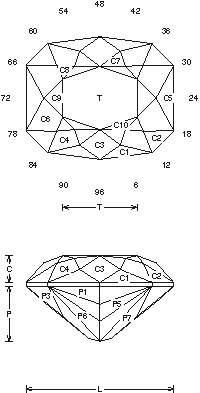

Hexed "T" (TLINE23.JRG)
By Jeff R. Graham
Copyright 1995

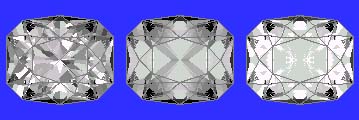

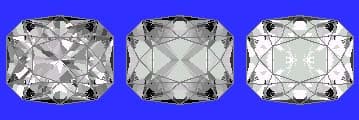

81.7% Light Return
Angles for R.I. = 1.62
61 facets + 10 facets on girdle = 71
2-fold, mirror-image symmetry
96 index
L/W = 1.203 T/W = 0.606 T/L = 0.503
P/W = 0.451 C/W = 0.218
H/W = (P+C)/W+0.02 = 0.689
P/H = 0.655 C/H = 0.316
Vol./W^3 = 0.348

Gram Book 1 - The P9(G) can be cut in after P4(G) if you want to. The P8,P10 facets only meet at the girdle, so it's important that you make sure that the girdle is level. Cut in any material, 1-12cts. This works well in Topaz, and Peridot.






Random - Cosine - ISO

Detailed faceting instructions by Jeff Graham available at The Rock Peddler


Jeff R. Graham

The late Jeff Graham was a prolific faceter, creator of many original faceting designs, and the author of several highly-regarded instructional faceting books such as Gram Faceting Designs.
