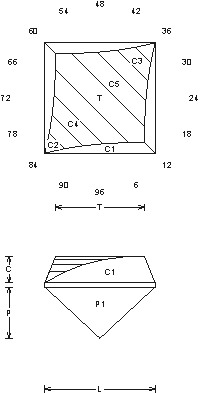

Mock Check Squares: Faceting Design Diagram


Successful tips and guide on Faceting Designs. Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Mock Check Squares"

0

Quartz (Amethyst, Citrine, Ametrine, Smokey, Rose)

Mock Check Squares gem design

Mock Check Squares - Reflector (MC41.JRG)
By Jeff R. Graham
Copyright 1999
90.3% Light Return
Angles for R.I. = 1.54
17 facets + 4 facets on girdle = 21
4-fold, mirror-image symmetry
96 index
L/W = 1.000 T/W = 0.807 T/L = 0.807
P/W = 0.466 C/W = 0.239
H/W = (P+C)/W+0.02 = 0.726
P/H = 0.643 C/H = 0.330
Vol./W^3 = 0.372

Addition # 4 - This cuts very easy, I like it in medium colors, it has a checker flash, believe it or not. I use it a lot for quick earrings in 4mm to 12mm sizes. Make the steps on the crown as even as you can. Works in Tourmaline and Topaz. Cut this in R.I. 1.54 to 1.93 (88.9%) without changes.

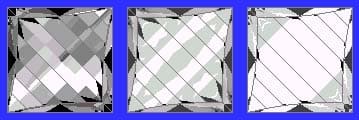

Random - Cosine - ISO
