Nonentity: Faceting Design Diagram


Tips, details, and a guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Nonentity".

0

Quartz (Amethyst, Citrine, Ametrine, Smokey, Rose)

Non-Entity Jeff Graham Facet Design

Jeff Graham Facet Design

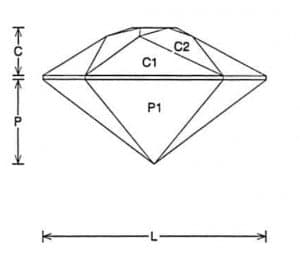

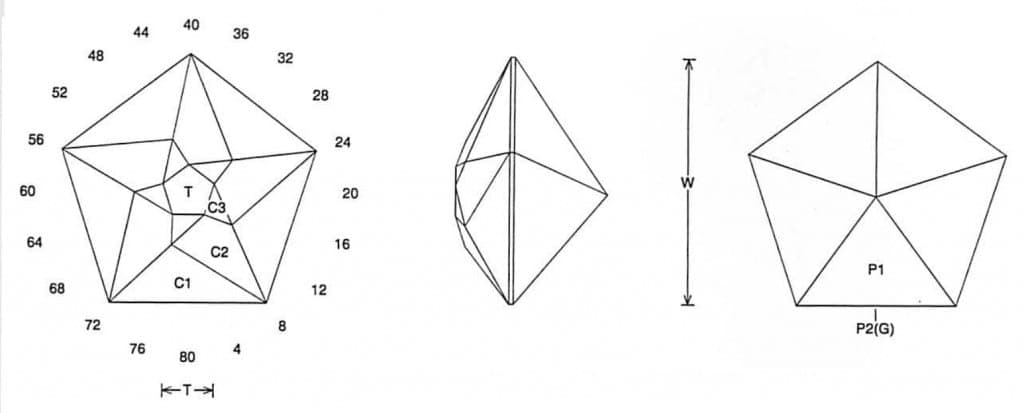

Nonentity (MIR80.JRG)
By Jeff R. Graham
Copyright 2005

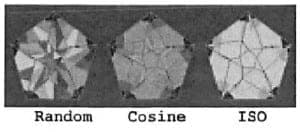

87.7% Light Return
Angles for R.I. = 1.54
21 facets + 5 facets on girdle = 26
5-fold symmetry
80 index
L/W = 1.051 T/W = 0.212 T/L = 0.202 P/W = 0.389
C/W = 0.223 H/W = (P+C)/W+0.02 = 0.632 P/H = 0.615 C/H = 0.353 Vol./W^3 = 0.183

PAVILION

CROWN

Addition # 10 - Cut in refractive indexes 1.54 to 2.14 with no changes. This has a cool reflection and works in about any type of rough. I use it for earrings and it is fast and fun to cut.
