Np-Point : Faceting Design Diagram

Tips, details, and a guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Np-Point".


Quartz (Amethyst, Citrine, Ametrine, Smokey, Rose)

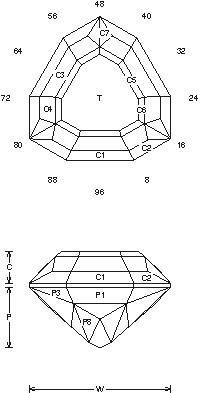

Np-Point (QTZ48.JRG)
By Jeff R. Graham
Copyright 1996

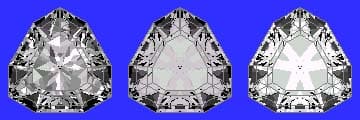

73.6% Light Return
Angles for R.I. = 1.54
67 facets + 9 facets on girdle = 76
3-fold, mirror-image symmetry
96 index
L/W = 1.016 T/W = 0.542 T/L = 0.534
P/W = 0.430 C/W = 0.227
H/W = (P+C)/W+0.02 = 0.677
P/H = 0.635 C/H = 0.336
Vol./W^3 = 0.253

Addition # 1 - The P7 facets meet at the girdle only. It's important to cut them evenly at the correct angle. The steps on the crown can be varied if you want, adjust the C7's. Cut in refractive indexes 1.54 to 1.93 (80.2%) with no changes. This design is fairly hard to cut, 2-12cts.
