Penta Brilliant: Faceting Design Diagram


Successful tips and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Penta Brilliant".

0

Tourmaline (Achroite, Dravite, Rubellite, Indicolite, Verdelite, Siberite)

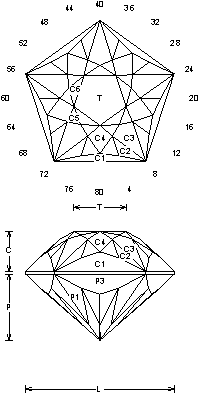

Penta Brilliant (MC82.JRG)
By Jeff R. Graham
Copyright 2002
86.5% Light Return
Angles for R.I. = 1.62
86 facets + 5 facets on girdle = 91
5-fold, mirror-image symmetry
80 index
L/W = 1.051 T/W = 0.369 T/L = 0.351
P/W = 0.470 C/W = 0.284
H/W = (P+C)/W+0.02 = 0.774
P/H = 0.607 C/H = 0.367
Vol./W^3 = 0.274

Addition # 7 - This is great in light to medium colored Quartz with no changes. Cut this in refractive indexes 1.54 to 2.14 with no changes. This is really nice in light Beryl. C2 on the crown is just cut to center point like P1 is.

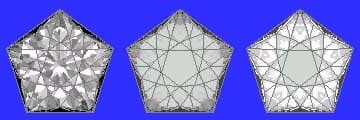

Random - Cosine - ISO
