Point Square Check – Reflector: Faceting Design Diagram

Successful tips and guide on Faceting Designs. Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Point Square Check"


Quartz (Amethyst, Citrine, Ametrine, Smokey, Rose)

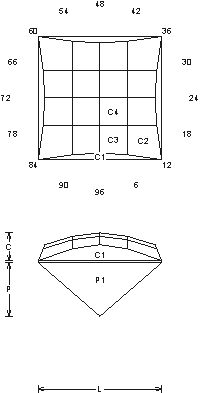

Point Square Check - Reflector (MC3.JRG)
By Jeff R. Graham
Copyright 1999

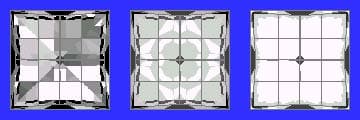

88.5% Light Return
Angles for R.I. = 1.54
24 facets + 4 facets on girdle = 28
2-fold, mirror-image symmetry
96 index
L/W = 1.000 P/W = 0.435 C/W = 0.225
H/W = (P+C)/W+0.02 = 0.679
P/H = 0.640 C/H = 0.331
Vol./W^3 = 0.292

Addition # 4 - This is fun to cut, and fast too. I like to cut this in dark Amethyst, it works well in sizes up to about 10mm for earrings. When setting the corners need to be protected, I usually just nick and polish them, so they are not sharp. This works well in Tourmaline and Topaz. Cut this in R.I. 1.54 to 2.14 (90.7%) without changes.
