Purdy 2: Faceting Design Diagram


Successful tips, details and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Purdy2".

0

Quartz (Amethyst, Citrine, Ametrine, Smokey, Rose)

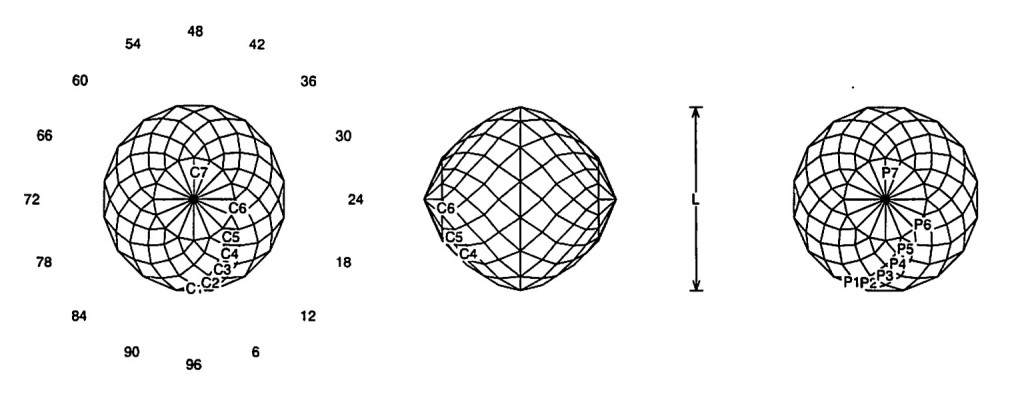

Purdy2 Jeff Graham Facet Design2

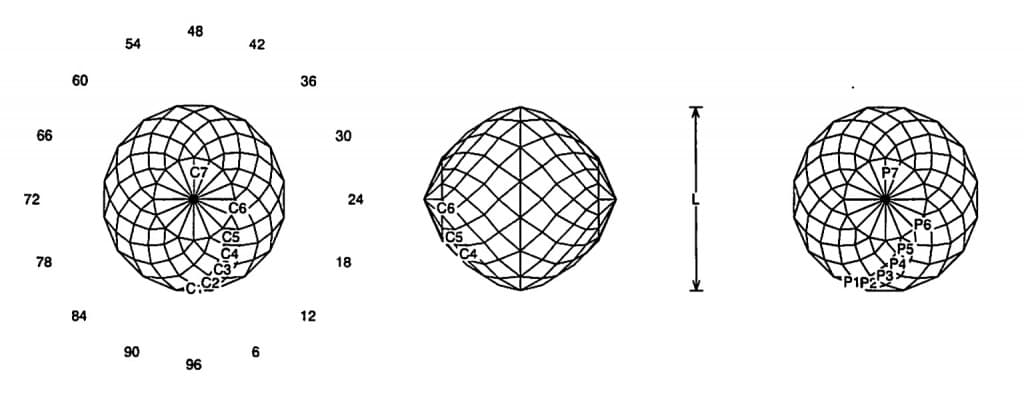

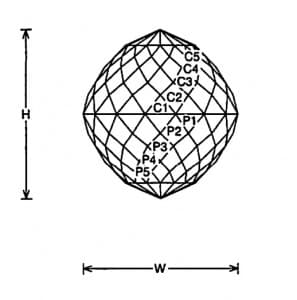

Purdy2 Jeff Graham Facet Design1

Purdy 2 (BEAD31.JRG)
By Jeff R. Graham
Copyright 2007
Angles for R.I. = 1.54
224 facets
16-fold, mirror-image symmetry
96 index
L/W = 1.000
H/W = 1.068
Vol./W^3 = 0.457

PAVILION

CROWN



Addition # 14 - NOTE: A temporary girdle can be cut using the P1 settings. This works well in about any material and I like it in light to medium saturated material.
