Royal Mine: Faceting Design Diagram
Detailed information and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Royal Mine".
Tourmaline (Achroite, Dravite, Rubellite, Indicolite, Verdelite, Siberite)

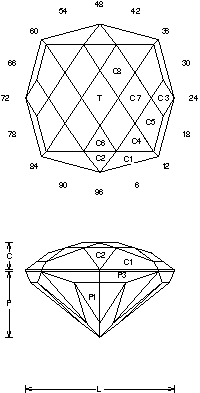

Royal Mine (CHECK63.JRG)
By Jeff R. Graham
87.4% Light Return
Angles for R.I. = 1.62
61 facets + 8 facets on girdle = 69
4-fold, mirror-image symmetry
L/W = 1.000 T/W = 0.372
T/L = 0.372 P/W = 0.441 C/W = 0.182
H/W = (P+C)/W+0.02 = 0.643
P/H = 0.686 C/H = 0.282
Vol./W^3 = 0.234
Addition # 8 - This one is really neat. I have always liked an antique/mine cut and this one with a diamond top is cool. Cut in refractive indexes 1.62 to 2.14 (89.7%) with no changes. This works in about any material.
