Scot Plaid: Faceting Design Diagram


Successful tips and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Scot Plaid".

0

Quartz (Amethyst, Citrine, Ametrine, Smokey, Rose)

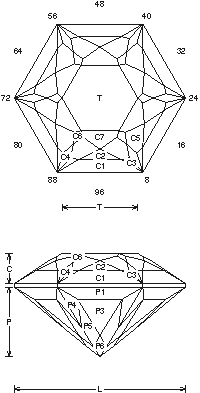

Scot Plaid (QTZ37.JRG)
By Jeff R. Graham
Copyright 1994

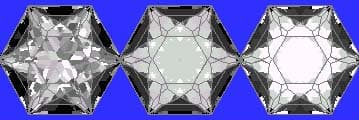

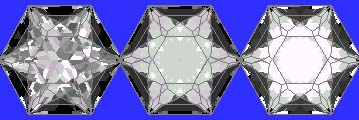

69.2% Light Return
Angles for R.I. = 1.54
97 facets + 6 facets on girdle = 103
6-fold, mirror-image symmetry
96 index
L/W = 1.155 T/W = 0.511 T/L = 0.442
P/W = 0.469 C/W = 0.202
H/W = (P+C)/W+0.02 = 0.691
P/H = 0.678 C/H = 0.293
Vol./W^3 = 0.271

Addition # 1 - This design is tough to cut because of the step cuts, and the small C6 facets (have to be exact) on the crown. This design is good for very light colored materials, notice it is not bright, but it has a lot of sparkle. Cut in refractive indexes 1.54 to 2.20 with no changes.
