Split Phenomenon: Faceting Design Diagram

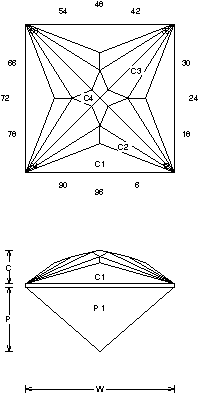

Successful tips and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Split Phenomenon"


Quartz (Amethyst, Citrine, Ametrine, Smokey, Rose)

Split Phenomenon (MIR17.JRG) Citrine cut by Tony Carson
By Jeff R. Graham
Copyright 2004

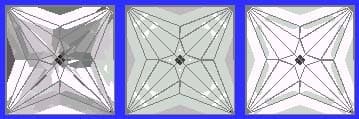

91.8% Light Return
Angles for R.I. = 1.54
28 facets + 4 facets on girdle = 32
4-fold, mirror-image symmetry
96 index
L/W = 1.000 P/W = 0.435 C/W = 0.226
H/W = (P+C)/W+0.02 = 0.680
P/H = 0.639 C/H = 0.332
Vol./W^3 = 0.264

Addition # 9 - Cut this in refractive indexes 1.54 to 1.93 with no changes. A table can be cut if the stone is large. This is designed for light colors and works well in about any material.
