Square Point: Faceting Design Diagram

Helpful tips, details and guide on Faceting Designs. Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Square Point"


Tourmaline (Achroite, Dravite, Rubellite, Indicolite, Verdelite, Siberite)

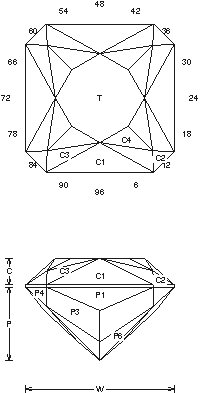

Square Point (TLINE36.JRG)
By Jeff R. Graham
Copyright 1996
75% Light Return
Angles for R.I. = 1.62
49 facets + 8 facets on girdle = 57
4-fold, mirror-image symmetry
96 index
L/W = 1.000 T/W = 0.601 T/L = 0.601
P/W = 0.495 C/W = 0.180
H/W = (P+C)/W+0.02 = 0.694
P/H = 0.712 C/H = 0.259
Vol./W^3 = 0.296

Addition # 1 - This cuts easy but the corners are not center point. Watch the meets and make sure that it's square. The P4 are just cut in with no meets (except girdle) and can be varied, 1-12cts. Cut in refractive indexes 1.62 to 1.76 80.95) with no changes.

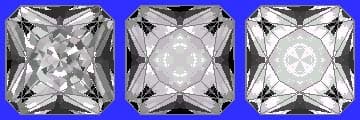

Random - Cosine - ISO

Detailed faceting instructions by Jeff Graham available at The Rock Peddler

Jeff R. Graham

The late Jeff Graham was a prolific faceter, creator of many original faceting designs, and the author of several highly-regarded instructional faceting books such as Gram Faceting Designs.
