Ten To Six: Faceting Design Diagram

Information, details and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Ten to Six".


Tourmaline (Achroite, Dravite, Rubellite, Indicolite, Verdelite, Siberite)

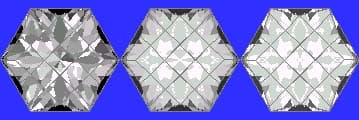

Ten To Six (CHECK27.JRG)
By Jeff R. Graham
Copyright 2001
86.1% Light Return
Angles for R.I. = 1.62
57 facets + 6 facets on girdle = 63
6-fold, mirror-image symmetry
96 index
L/W = 1.155 T/W = 0.299 T/L = 0.259
P/W = 0.493 C/W = 0.213
H/W = (P+C)/W+0.02 = 0.726
P/H = 0.679 C/H = 0.293
Vol./W^3 = 0.292

Addition # 6 - This can be cut in refractive indexes 1.62 to 1.93 (88.7%) with no changes. The crown is a bit different, notice that the C2, C3 do not meet the girdle. The important thing you need to do is split the checks evenly to meet C4,C5 and line them up as you go around. This is fun to cut in about any material.
