Twirl: Faceting Design Diagram

Successful tips, details and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Twirl".


Quartz (Amethyst, Citrine, Ametrine, Smokey, Rose)

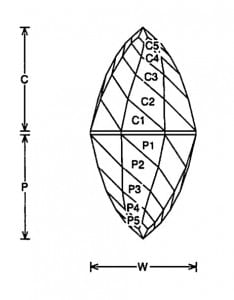

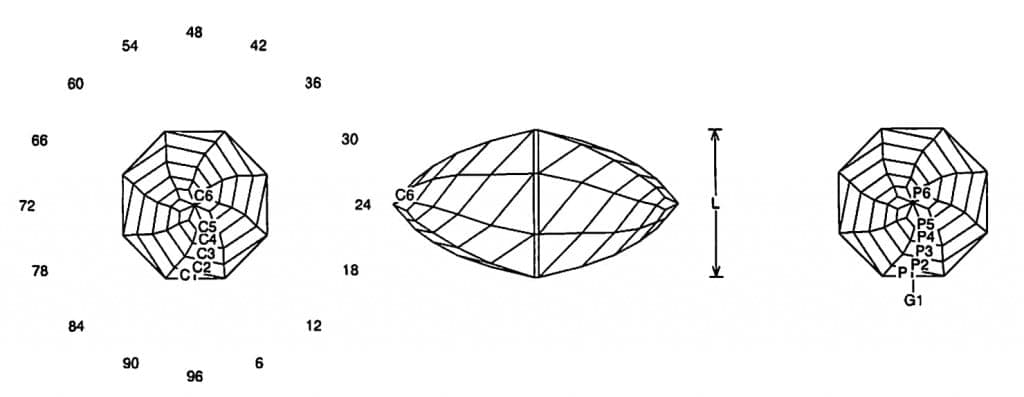

Twirl Jeff Graham Facet DesignTwirl Jeff Graham Facet Design2

Twirl (BEAD7.JRG)
By Jeff R. Graham
Copyright 2007
Angles for R.I. = 1.54
96 facets + 8 facets on girdle = 104
8-fold symmetry
96 index
L/W = 1.000
P/W = 0.968 C/W = 0.967
H/W = (P+C)/W+0.02 = 1.955
P/H = 0.495 C/H = 0.495
Vol./W^3 = 0.796



Addition # 14 - This is a very nice long bead. It works well in about any material. Note that the crown and pavilion are the same. A table can be cut at C6, P6, but I usually do not bother. Just use a ball burr and concave the ends slightly so that a bead spacer will fit in and protect the ends.

Detailed faceting instructions by Jeff Graham available at The Rock Peddler

Jeff R. Graham

The late Jeff Graham was a prolific faceter, creator of many original faceting designs, and the author of several highly-regarded instructional faceting books such as Gram Faceting Designs.
