Zippidy Do: Faceting Design Diagram

Helpful tips, details and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Zippidy Do"


Tourmaline (Achroite, Dravite, Rubellite, Indicolite, Verdelite, Siberite)

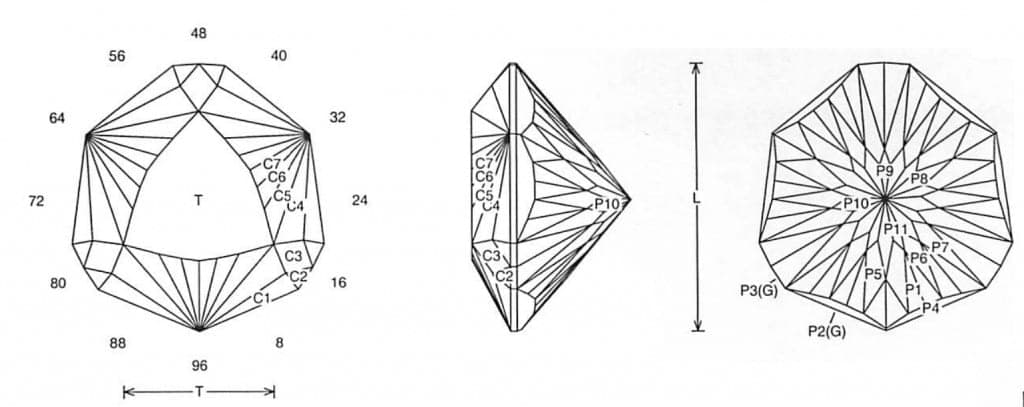

Zipidy Do Jeff Graham Facet DesignZipidy Do Jeff Graham Facet Design

Zippidy Do (MC104.JRG)
By Jeff R. Graham
Copyright 2006

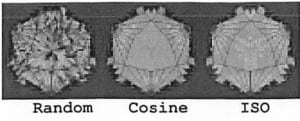

86.7% Light Return
Angles for R.I. = 1.62
118 facets + 12 facets on girdle = 130
3-fold, mirror-image symmetry
96 index

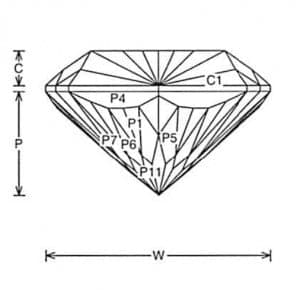

L/W = 1.037 T/W = 0.596 T/L = 0.574 P/W = 0.457
C/W = 0.153 H/W = (P+C)/W+0.02 = 0.630 P/H = 0.725 C/H = 0.243 Vol./W^3 = 0.228



Addition # 12 - Cut in refractive indexes 1.62 to 2.14 (91.2%) with no changes. This is not all that hard to cut and works best in light to medium saturated materials. I designed it for a large light pink Tourmaline.

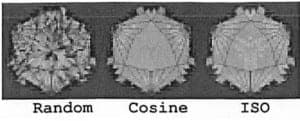

Zipidy Do Jeff Graham Facet Design

Detailed faceting instructions by Jeff Graham available at The Rock Peddler

Jeff R. Graham

The late Jeff Graham was a prolific faceter, creator of many original faceting designs, and the author of several highly-regarded instructional faceting books such as Gram Faceting Designs.
