Blue Max: Faceting Design Diagram


Detailed information and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Blue Max".

0

Quartz (Amethyst, Citrine, Ametrine, Smokey, Rose)

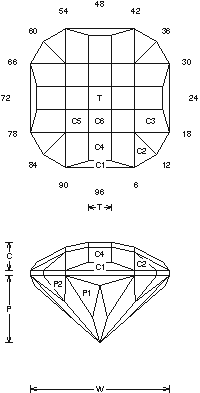

Blue Max (CHECK41.JRG)
By Jeff R. Graham
Copyright 2001

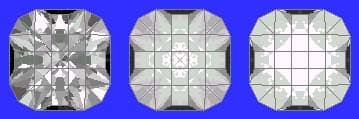

87.3% Light Return
Angles for R.I. = 1.54
65 facets + 12 facets on girdle = 77
4-fold, mirror-image symmetry
96 index
L/W = 1.000 T/W = 0.169 T/L = 0.169
P/W = 0.485 C/W = 0.203
H/W = (P+C)/W+0.02 = 0.708
P/H = 0.685 C/H = 0.287
Vol./W^3 = 0.286

Addition # 6 - Cut this in refractive indexes 1.54 to 1.93 with no changes. I like this in any medium saturated material. This works well in most man- made corundum colors...


Random - Cosine - ISO

Detailed faceting instructions by Jeff Graham available at The Rock Peddler


Jeff R. Graham

The late Jeff Graham was a prolific faceter, creator of many original faceting designs, and the author of several highly-regarded instructional faceting books such as Gram Faceting Designs.
