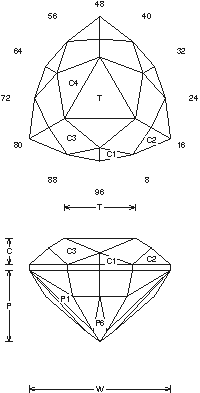

Detailed information and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Budgy".
Quartz (Amethyst, Citrine, Ametrine, Smokey, Rose)
Budgy (B39.JRG)
By Jeff R. Graham
Copyright 2001
81.8% Light Return
Angles for R.I. = 1.54
52 facets + 12 facets on girdle = 64
3-fold, mirror-image symmetry
96 index
L/W = 1.023 T/W = 0.503 T/L = 0.492
P/W = 0.508 C/W = 0.188
H/W = (P+C)/W+0.02 = 0.716
P/H = 0.709 C/H = 0.263
Vol./W^3 = 0.258
Addition # 5 - This is very nice and works especially well in light colored materials. It can be cut in R.I. 1.54 to 1.93 (81.9%) with no changes.

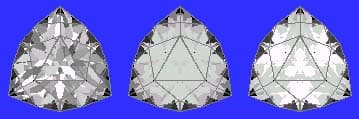

Random - Cosine - ISO
Detailed faceting instructions by Jeff Graham available at The Rock Peddler
