Candy Spin: Faceting Design Diagram

Detailed information and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Candy Spin".


Quartz (Amethyst, Citrine, Ametrine, Smokey, Rose)

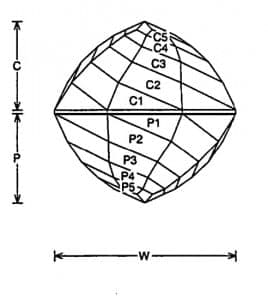

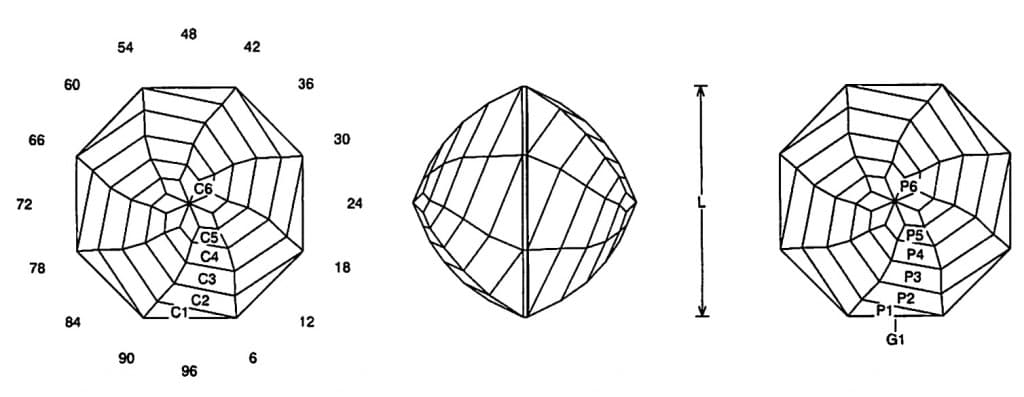

Candy Spin Jeff Graham Facet Design2Candy Spin Jeff Graham Facet Design1

Candy Spin (BEAD8.JRG)
By Jeff R. Graham
Copyright 2007
Angles for R.I. = 1.54
96 facets + 8 facets on girdle = 104
8-fold symmetry
96 index
L/W = 1.000
P/W = 0.484 C/W = 0.484
H/W = (P+C)/W+0.02 = 0.988
P/H = 0.490 C/H = 0.490
Vol./W^3 = 0.403



Addition # 14 - This cuts easily and is nice in about any material. A table can be cut at P6, C6, if desired. I normally just use a round ball burr and cut the ends in a little so that a round bead spacer will snug in and protect the ends.

Detailed faceting instructions by Jeff Graham available at The Rock Peddler

Jeff R. Graham

The late Jeff Graham was a prolific faceter, creator of many original faceting designs, and the author of several highly-regarded instructional faceting books such as Gram Faceting Designs.
