Carving Techniques for Handling Inclusions in Transparent Gems

Inclusions don't have to result in a loss of mass or value when cutting transparent gems. Learn how to manage inclusions with basic gem carving techniques.

3 Minute Read

HomeLearning CenterJewelry and LapidaryLapidary and Faceting Guides, Tips and InstructionsCarving Techniques for Handling Inclusions in Transparent Gems

IGS may receive customer referral fees from the companies listed in this page.

Most faceters have collections of transparent gems that have languished in their scrap boxes for years. From a cutting standpoint, they're mostly junk because of inclusions, materials trapped inside the stones. Some of these pieces may have usable areas, but it's heartbreaking to sacrifice all that yield for a clean stone, especially considering the cost of the rough. Well, there is hope. With a few simple carving techniques, you can remove or camouflage the inclusions and turn these leftovers into wonderful pieces with minimal effort.

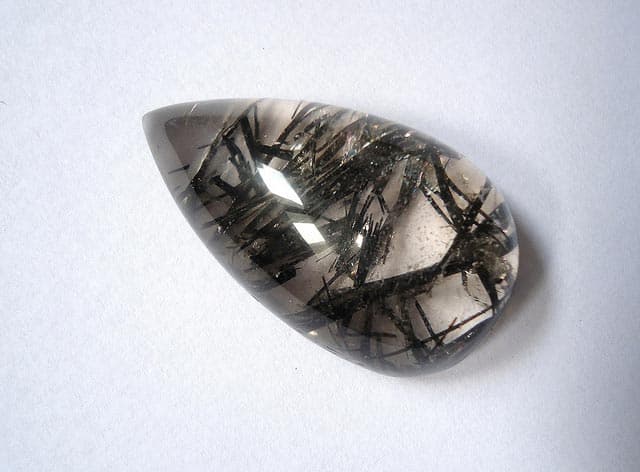

Rutilated quartz teardrop
Sometimes, the best way to manage inclusions in transparent gems is to leave them be. For example, this rutilated quartz teardrop beautifully showcases the rutile crystals trapped inside the quartz. In other cases, some simple gem carving techniques can improve the attractiveness and value of an included stone. Photo by Mauro Cateb. Licensed under CC By 2.0.

If done well, the results can be worth as much or more than if the stones were clean and faceted. You'll not only make good use of the rough but also recover your investment!

Removing Inclusions

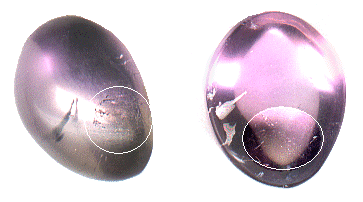

One simple approach to managing inclusions is to cut them out and create a design based on those cuts. Here is an amethyst with a cluster of inclusions near the bottom and right (highlighted areas) where they would be most visible.

Amethyst with inclusions
Amethyst with inclusions

I removed the small inclusions with a wheel-shaped bit. (See Cabochon Carving Tools and Techniques). As I did, I began to see something like a beehive design developing. After I removed the central inclusions, I expanded the beehive to fill the center. Here is the finished stone. All the uglies are gone, and the carving looks purposeful.

Inclusions in Transparent Gems - Carved Amethyst
Amethyst cabochon with a reverse intaglio design on the bottom, viewed from the top.

Camouflaging Inclusions in Transparent Gems

If you have transparent gems with too many inclusions to remove, consider camouflaging them, instead. One of the simplest methods is to cut a cabochon and leave the bottom rough. Rough shaping a gem leaves tiny, subsurface fractures. On the bottom of a cab, however, these add sparkle. The frosted and sparkling surface camouflages small inclusions and draws attention away from larger ones.

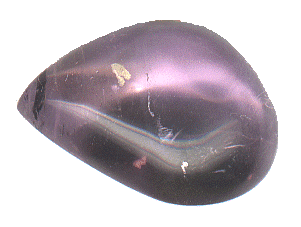

Here is another included amethyst stone that was cut from the same rough as the previous piece. It has several veils, some running all the way through the stone.

Inclusions in Transparent Gems - Amethyst with Veils
Amethyst with veils

I cut a simple design on the crown of this stone. While it's hard to see from the pictures, the carvings are directly over the largest veils. This greatly reduced their visibility. Their main purpose, however, was to draw attention to the top of the stone. (Remember the general rule: if a stone is transparent and clean, put the accents on the bottom. If it's included, put the accents on the top). The smaller veils were still fairly visible, since they reflect light so well. To further camouflage the inclusions, I ground the bottom down with a 180-grit wheel and left it frosted. This did wonders for the stone. The frosted bottom effectively overpowers the smaller inclusions, while the carving draws attention to the top.

Inclusions in Transparent Gems - Carved Amethyst
Amethyst with carvings

Note that carved areas are not polished again. If they were, they would be less effective at attracting attention and might even magnify the inclusions they were designed to hide!

Keeping Inclusions

The simplest technique for dealing with inclusions is to keep them. Sometimes this is the best option, too. Many inclusions in transparent gems are interesting or attractive in themselves. Rutilated quartz is a prime example.

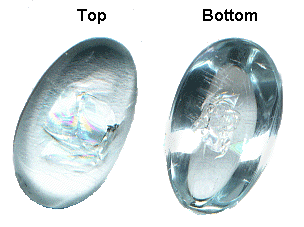

This aquamarine was a faceter's nightmare. It had beautiful color and transparency but also a large fingerprint inclusion running down the center. The stone had plenty of room to facet on each side of the inclusions, so I sawed it in two. While sawing along a fracture, a big chunk broke out of the center. This was the side that would have been the table. It was already a bit thin, so cutting down through the ruptured area would have left it too thin for faceting. I domed this stone and then examined it. The break provided an interesting element, so I simply left it. As I was polishing the bottom, pieces broke off the hole and made scratches across the bottom. Once again, I was lucky. They look purposeful from the top and added interest to the design.

Inclusions in Transparent Gems - Aquamarine with Fingerprint
Aquamarine with fingerprint inclusion

Note the high dispersion on the break. If you carve a reverse intaglio in a gem with high dispersion, it will be even more dramatic. This is an excellent technique for zircon, sphene, etc.

Magnification Tricks for Transparent Gems

Another method for hiding inclusions involves magnification. The shape of a cabochon magnifies whatever is on the bottom. If you cut a concave curve on the crown, however, the center will be the focus and the bottom and edges will appear reduced.

Here is a piece of carved Madeira citrine. At the top is a feather that runs a third of the way down the center line. You can see a bit of it at the top of the photo. Notice how clean the center looks? That's because the lens is concentrating on the center and the elements on the outside are moved from view.

Inclusions in Transparent Gems - Citrine with Feather

Below is a picture of the bottom of this citrine. You can see how large the carving actually is. The feather I was trying to hide runs right down to the top of the middle branch.

Inclusions in Transparent Gems - Carved Citrine
