China Check - Reflector: Faceting Design Diagram
Detailed information and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "China Check"0

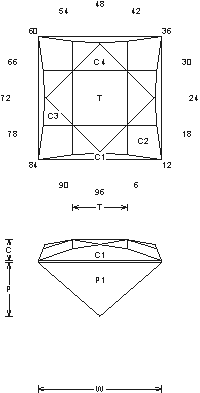

China Check - Reflector (MC6.JRG)
By Jeff R. Graham
82.6% Light Return
Angles for R.I. = 1.54
25 facets + 4 facets on girdle = 29
4-fold, mirror-image symmetry
L/W = 1.000 T/W = 0.442 T/L = 0.442
P/W = 0.435 C/W = 0.169
H/W = (P+C)/W+0.02 = 0.624
P/H = 0.696 C/H = 0.271
Vol./W^3 = 0.285
Addition # 4 - This is fun to cut, there are no meets on the top at C3. Cut them as square as you can. This design has a lot of sparkle, you will be surprised. Cut in about any color and size. This works well in Tourmaline and Topaz. Cut this in R.I. 1.54 to 2.14 (92.5%) without changes.

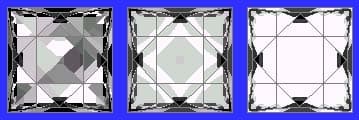

Random - Cosine - ISO
Detailed faceting instructions by Jeff Graham available at The Rock Peddler
