Cross Mod-Square: Faceting Design Diagram
Successful tips and guide on Faceting Designs. Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Cross Mod-Square".0
Tourmaline (Achroite, Dravite, Rubellite, Indicolite, Verdelite, Siberite)

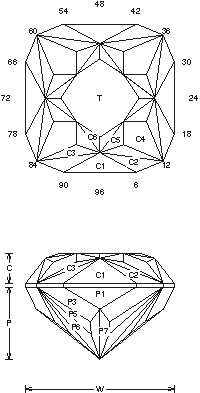

Cross Mod-Square (TLINE7.JRG)
By Jeff R. Graham
83.8% Light Return
Angles for R.I. = 1.62
77 facets + 12 facets on girdle = 89
4-fold, mirror-image symmetry
L/W = 1.000 T/W = 0.527 T/L = 0.527
P/W = 0.486 C/W = 0.202
H/W = (P+C)/W+0.02 = 0.709
P/H = 0.686 C/H = 0.286
Vol./W^3 = 0.304
Addition # 1 - This design has very deep breaks. In order not to waste material cut a preform, see heading for measurements. The depth of this design helps light material and gives the stone a nice shape, 1-18cts. Cut in refractive indexes 1.62 to 1.93 (86.8%) with no changes. Works well in Topaz also...
