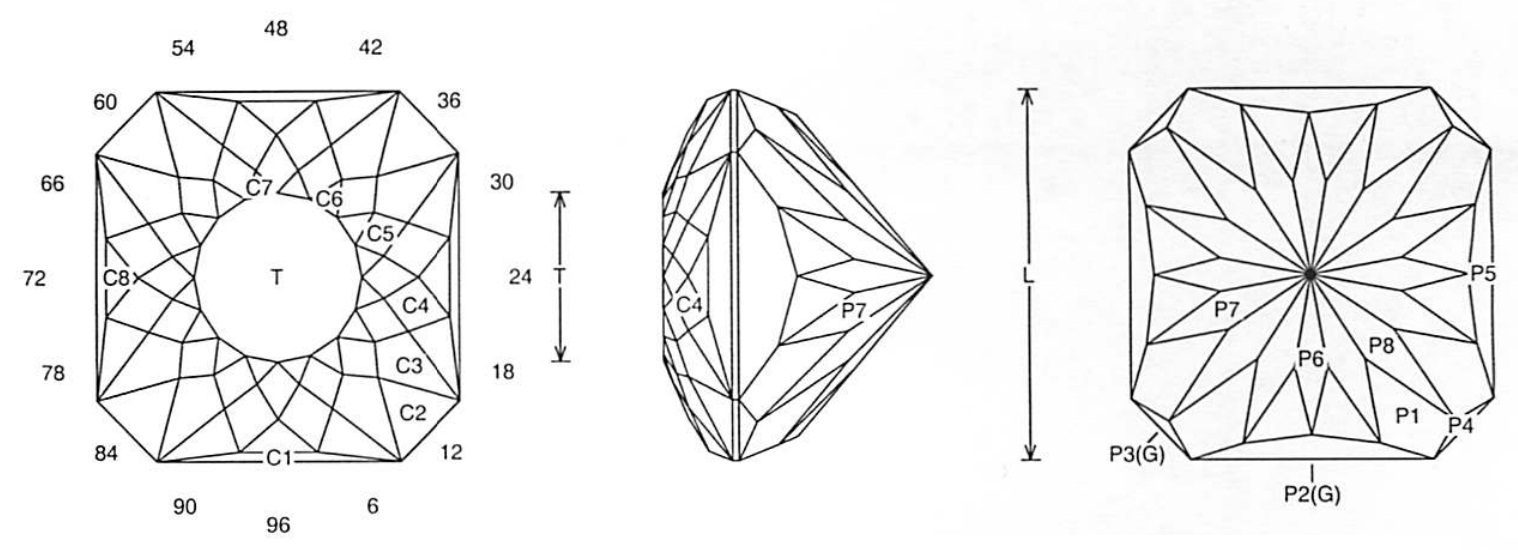

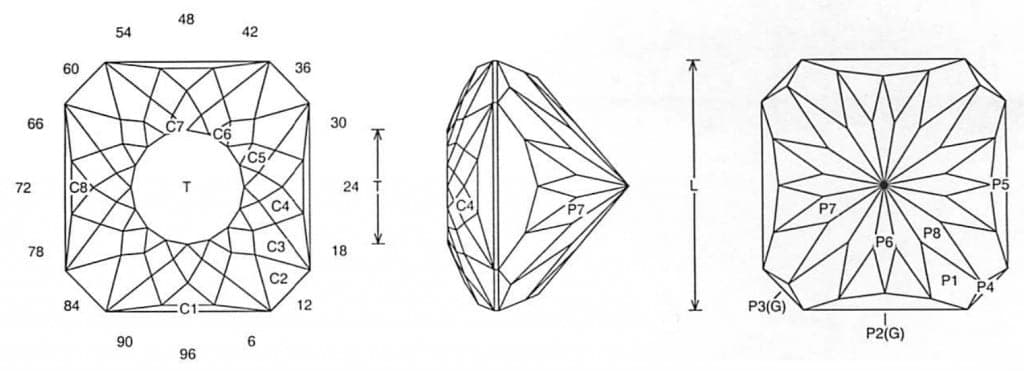

Crystal Glitter Squared: Faceting Design Diagram

Quartz (Amethyst, Citrine, Ametrine, Smokey, Rose)

Crystal Glitter Squared (MC115.JRG)
By Jeff R. Graham
Copyright 2006

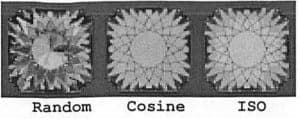

84.1% Light Return
A ngles for R.I. = 1.54
109 facets + 8 facets on girdle = 117
4-fold, mirror-image symmetry
96 index

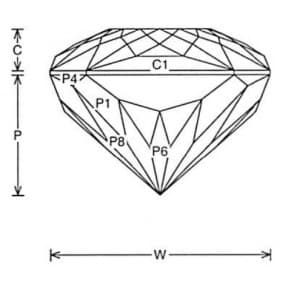

L/W = 1.000 T/W = 0.458 T/L = 0.458 P/W = 0.541
C/W = 0.187 H/W = (P+C)/W+0.02 = 0.748 P/H = 0.723 C/H = 0.250 Vol./W^3 = 0.325

PAVILION

CROWN

Addition # 12 - Cut this in refractive indexes 1.54 to 2.14 with no changes. This is a great cut for Beryl, and I like it in Aquamarine. This cuts pretty easy and will work well in light to medium saturated materials. Note: The P3(G)cuts into about 25% of width, it does not have a meet and can vary a little. The C8 can be cut earlier, but it is easy to just tweak to make the meets.

Detailed faceting instructions by Jeff Graham available at The Rock Peddler
