Delta "T": Faceting Design Diagram


Detailed information and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Delta "T" ".

0

Peridot (Olivine, Green, apple green to yellow green)

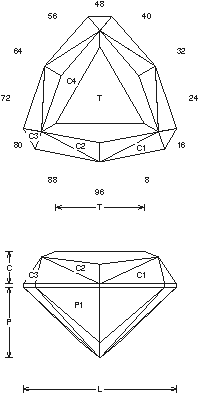

Delta "T" (PDOT8.JRG)
By Jeff R. Graham
Copyright 1998
76% Light Return
Angles for R.I. = 1.67
34 facets + 9 facets on girdle = 43
3-fold, mirror-image symmetry
96 index
L/W = 1.053 T/W = 0.611 T/L = 0.580
P/W = 0.487 C/W = 0.223
H/W = (P+C)/W+0.02 = 0.730
P/H = 0.668 C/H = 0.305
Vol./W^3 = 0.249

Addition # 3 - The P3 cuts to center point, when they look like long straight sided rectangles(3) they are right. You may have to fish a little. The rest of this design cuts easy, any material, 1-8cts. Cut in refractive indexes 1.67 to 2.14 (78.6%)with no changes.

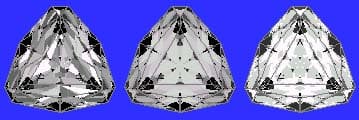

Random - Cosine - ISO
