Enmesh: Faceting Design Diagram


Detailed information and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Enmesh".

0

Quartz (Amethyst, Citrine, Ametrine, Smokey, Rose)

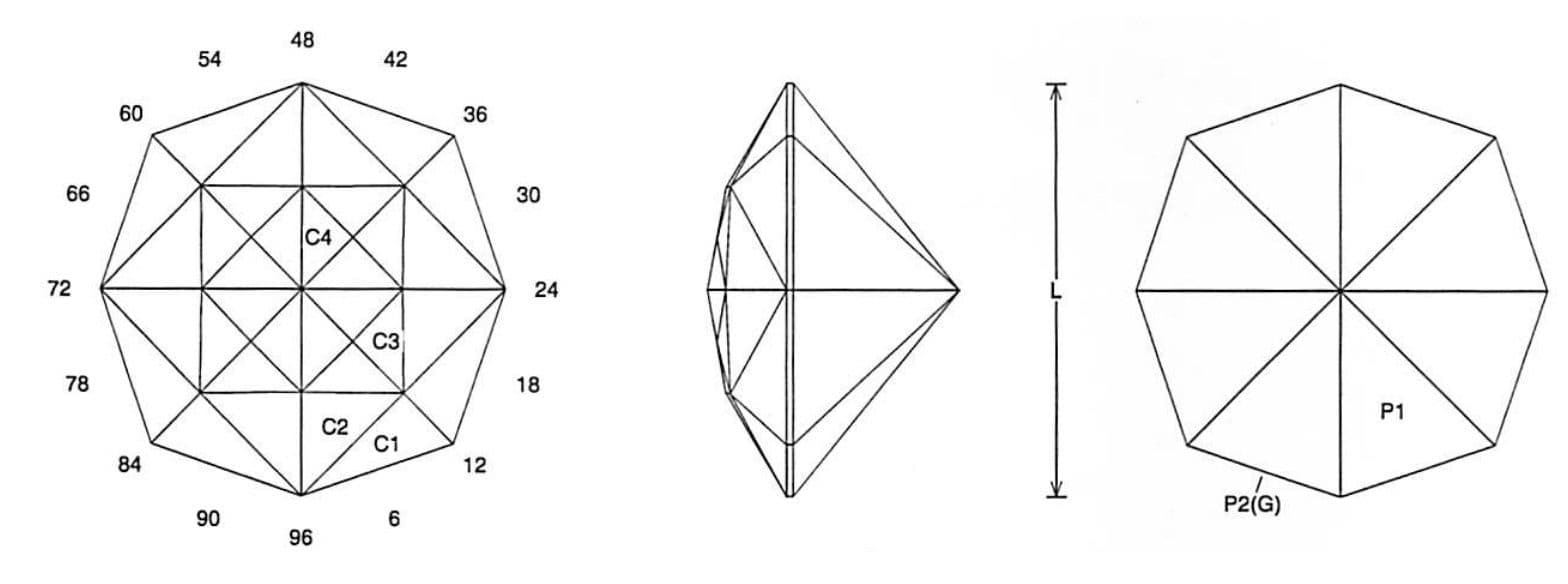

Enmesh_facet_design_1Enmesh_facet_design_2

Enmesh (MIR68.JRG)
By Jeff R. Graham
Copyright 2005
93.1% Light Return
Angles for R.I. = 1.54
40 facets + 8 facets on girdle = 48
4-fold, mirror-image symmetry
96 index

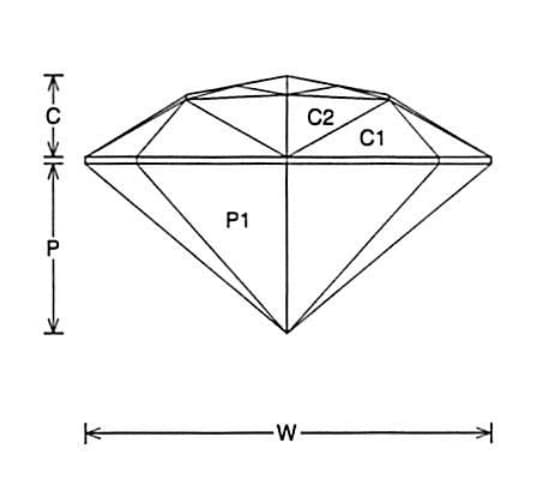

L/W = 1.000 P/W = 0.412 C/W = 0.196
H/W = (P+C)/W+0.02 = 0.628 P/H = 0.655 C/H = 0.313
Vol./W^3 = 0.191

PAVILION

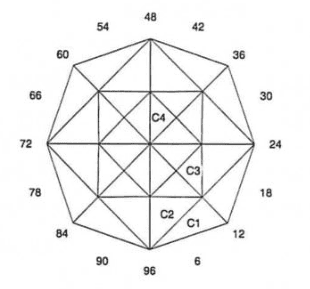

CROWN

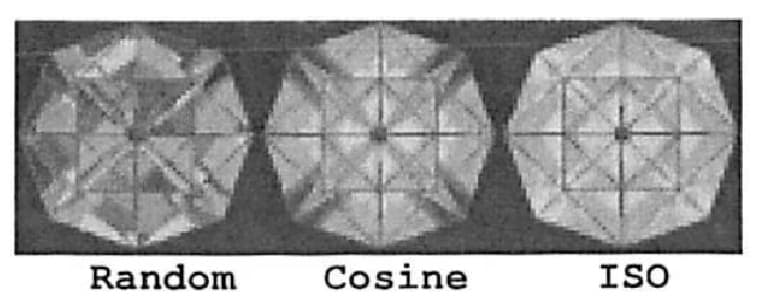

Addition # 10 - Cut in refractive indexes 1.54 to 2.14 with no changes. This is fast, fun, and neat to cut. It has very nice Mirage patterns in the reflection. I like it in about any material. It works well in medium colored stones.

Enmesh_facet_design_3

Detailed faceting instructions by Jeff Graham available at The Rock Peddler


Jeff R. Graham

The late Jeff Graham was a prolific faceter, creator of many original faceting designs, and the author of several highly-regarded instructional faceting books such as Gram Faceting Designs.
