Evince: Faceting Design Diagram

Detailed information and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Evince".


Quartz (Amethyst, Citrine, Ametrine, Smokey, Rose)

Jeff Graham Facet Design

Jeff Graham Facet Design

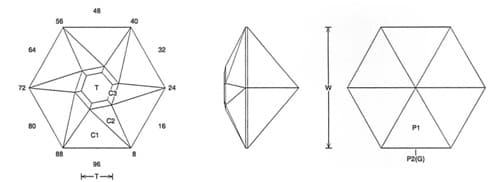

Evince (MIR60.JRG)
By Jeff R. Graham
Copyright 2005
93.5% Light Return
Angles for R.I. = 1.54
25 facets + 6 facets on girdle = 31
6-fold symmetry
96 index
L/W = 1.155 T/W = 0.266 T/L = 0.231 P/W = 0.435 C/W = 0.181 H/W = (P+C)/W+0.02 = 0.636 P/H = 0.684 C/H = 0.285 Vol./W^3 = 0.214



Addition # 10 - Cut this in refractive indexes 1.54 to 1.93 with no changes. This is outstanding in light to medium saturated materials. It makes great earrings and is a lot of fun to cut.
