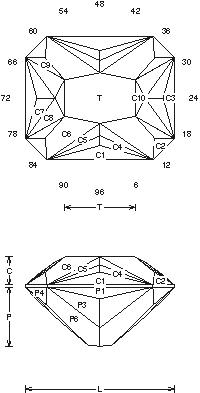

Fancy: Faceting Design Diagram

Successful tips and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Fancy - Quartz".


Quartz (Amethyst, Citrine, Ametrine, Smokey, Rose)

Fancy (QTZ52.JRG)
By Jeff R. Graham
Copyright 1996
82.8% Light Return
Angles for R.I. = 1.54
59 facets + 8 facets on girdle = 67
2-fold, mirror-image symmetry
96 index
L/W = 1.200 T/W = 0.568 T/L = 0.473
P/W = 0.479 C/W = 0.226
H/W = (P+C)/W+0.02 = 0.726
P/H = 0.660 C/H = 0.312
Vol./W^3 = 0.373

Addition # 1 - A 1.20 L/W preform is a good idea. It makes this rectangle much easier to cut. With a preform you can cut all of the girdle facets first, then cut everything else in to meet. This design will darken a bit.

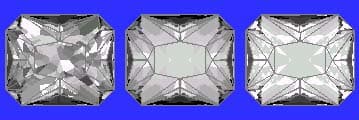

Random - Cosine - ISO

Detailed faceting instructions by Jeff Graham available at The Rock Peddler

Jeff R. Graham

The late Jeff Graham was a prolific faceter, creator of many original faceting designs, and the author of several highly-regarded instructional faceting books such as Gram Faceting Designs.
