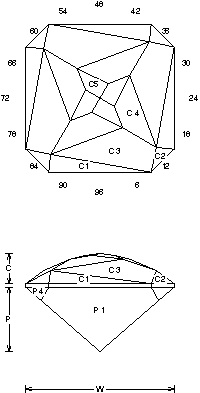

Kilter: Faceting Design Diagram
Successful tips, details, and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Kilter"0
By Jeff R. Graham
94.4% Light Return
Angles for R.I. = 1.54
28 facets + 12 facets on girdle = 40
L/W = 1.000 P/W = 0.435 C/W = 0.203
H/W = (P+C)/W+0.02 = 0.657
P/H = 0.661 C/H = 0.309
Vol./W^3 = 0.267
Addition # 9 - Cut in refractive indexes 1.54 to 2.14 with no changes. This is interesting and works well in about any material. It works well in Garnet and Sapphire. Note: The corners are just cut in and can vary, make them as close to the diagram as you can. A table can be cut to meet C5 on a large stone.

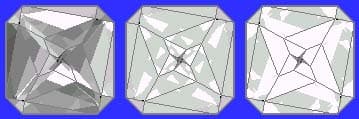

Random - Cosine - ISO
Detailed faceting instructions by Jeff Graham available at The Rock Peddler
