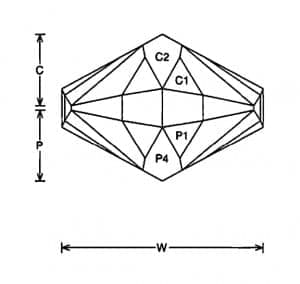

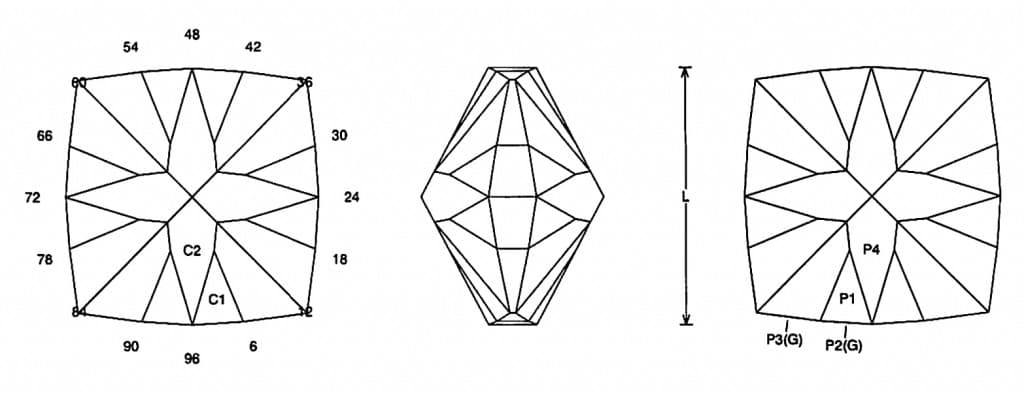

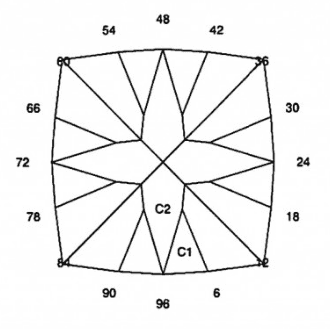

Knight: Faceting Design Diagram
Successful tips, details, and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Knight"0
By Jeff R. Graham
Angles for R.I. = 1.54
40 facets + 16 facets on girdle = 56
4-fold, mirror-image symmetry
L/W = 1.000
P/W = 0.350 C/W = 0.350
H/W = (P+C)/W+0.02 = 0.719
P/H = 0.486 C/H = 0.486
Vol./W^3 = 0.304
Addition # 14 - This is quick and easy to cut. It's made to go on a thin chain and have a nice edge look. The drill hole should be ground out with a small burr bit to fit a round bead, what ever size looks correct.
Detailed faceting instructions by Jeff Graham available at The Rock Peddler
