Parity: Faceting Design Diagram

Quartz (Amethyst, Citrine, Ametrine, Smokey, Rose)

Parity (MIR67.JRG)
By Jeff R. Graham
Copyright 2005

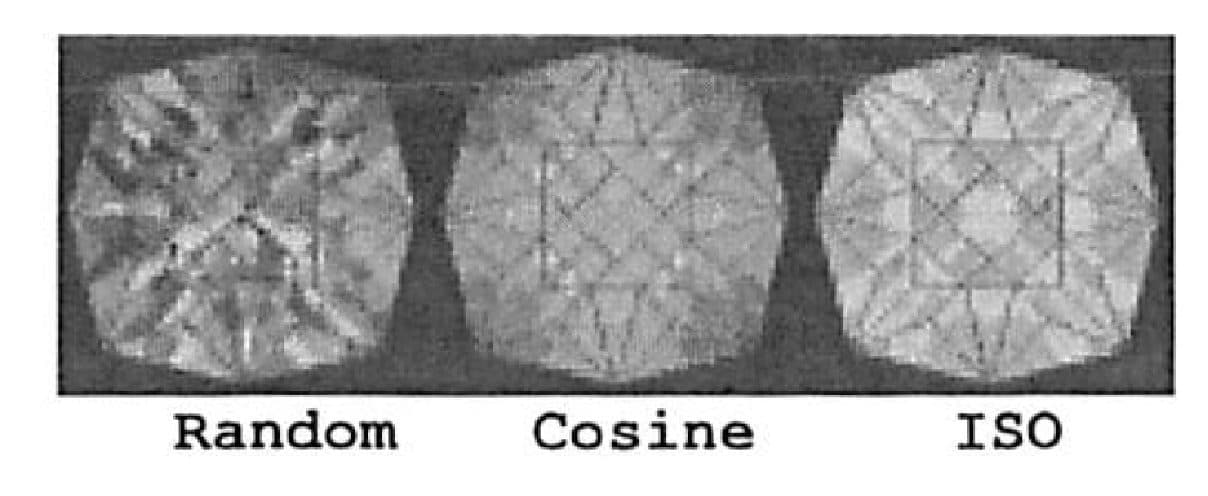

92.3% Light Return
Angles for R.I. = 1.54
49 facets + 8 facets on girdle = 57
4-fold, mirror-image symmetry
96 index

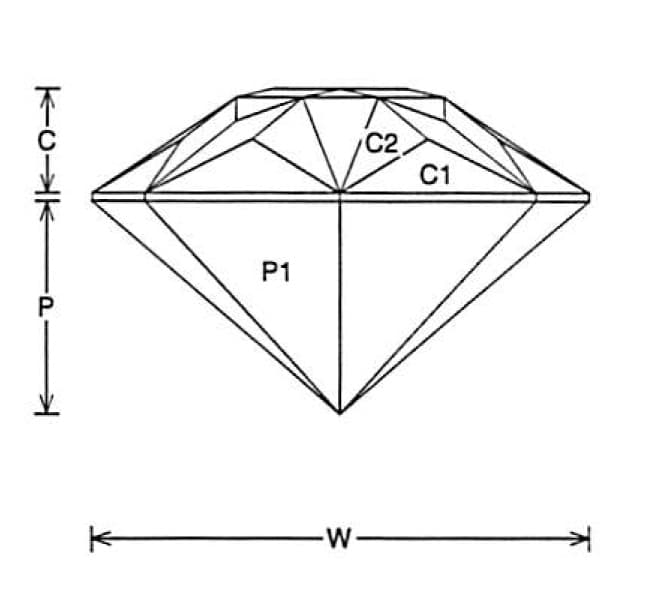

L/W = 1.000 T/W = 0.276 T/L = 0.276 P/W = 0.420
C/W = 0.208 H/W = (P+C)/W+0.02 = 0.648 P/H = 0.648 C/H = 0.322 Vol./W^3 = 0.210

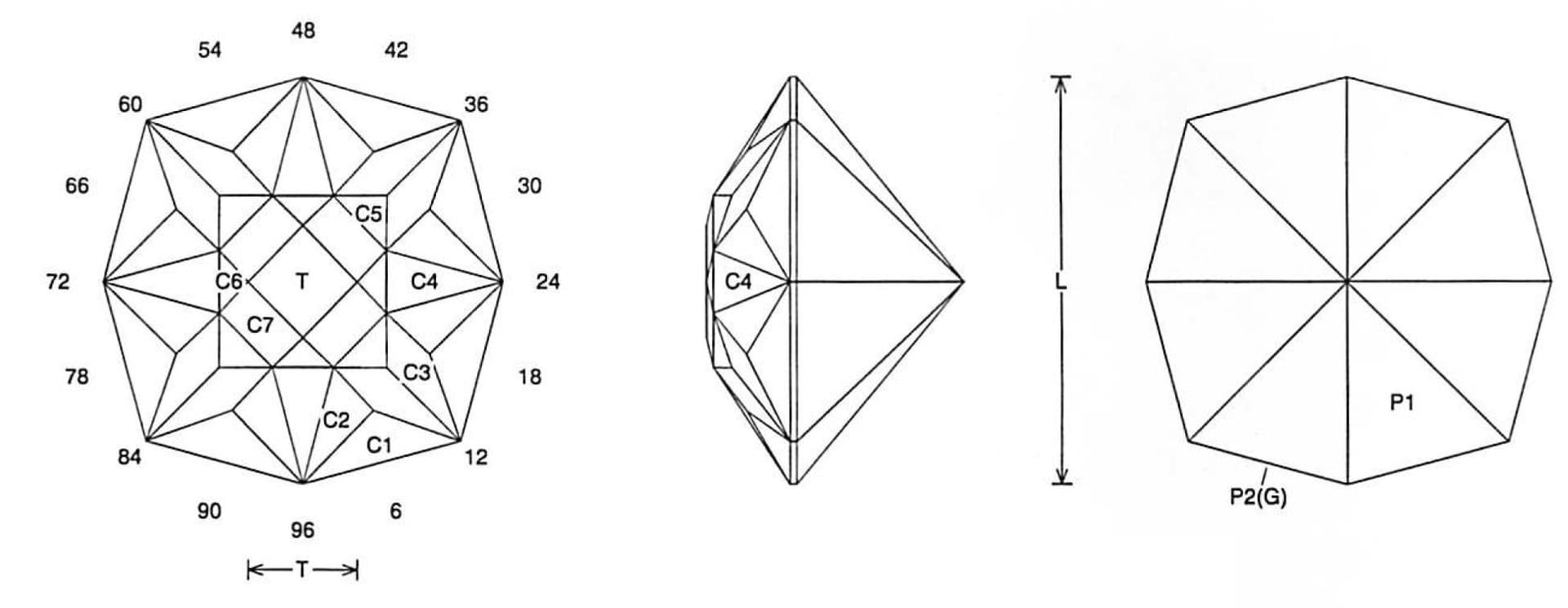

PAVILION

CROWN

Addition # 10 - Cut in refractive indexes 1.54 to 2.14 with no changes. This is not hard to cut and makes a very nice stone. I like it in medium saturated materials. It makes a nice stone in Tourmaline and is good for thin nodules.

Detailed faceting instructions by Jeff Graham available at The Rock Peddler
