Short Torque: Faceting Design Diagram
Successful tips and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Short Torque".

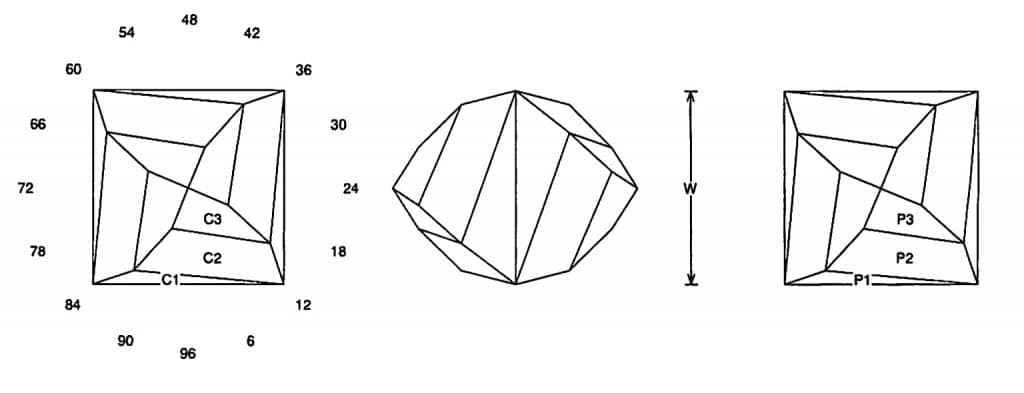

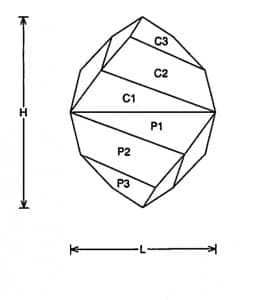

Short Torque (BEAD27.JRG)
By Jeff R. Graham
Angles for R.I. = 1.54
L/W = 1.000
H/W = 1.291
Vol./W^3 = 0.601
Addition # 14 - NOTE: A temporary girdle can be cut using the P1 settings. The girdle can be left and used to set the bead which makes a very interesting looking gemstone.
Detailed faceting instructions by Jeff Graham available at The Rock Peddler
