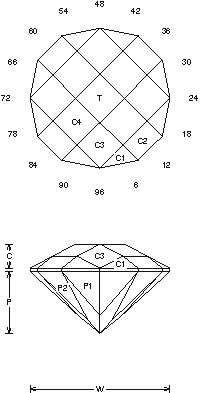

Successful tips, details and guide on Faceting Designs. Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Starlight"
Quartz (Amethyst, Citrine, Ametrine, Smokey, Rose)
Starlight (CHECK37.JRG)
By Jeff R. Graham
Copyright 2001
87.9% Light Return
Angles for R.I. = 1.54
41 facets + 12 facets on girdle = 53
4-fold, mirror-image symmetry
96 index
L/W = 1.000 T/W = 0.351 T/L = 0.351
P/W = 0.443 C/W = 0.173
H/W = (P+C)/W+0.02 = 0.636
P/H = 0.697 C/H = 0.272 Vol./W^3 = 0.208
Addition # 6 - Cut this in refractive indexes 1.54 to 1.93 with no changes. I originally designed this for Garnets, it works well in saturated materials.

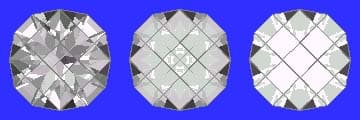

Random - Cosine - ISO
Detailed faceting instructions by Jeff Graham available at The Rock Peddler
