Straight Pedals: Faceting Design Diagram

Successful tips and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Straight Pedals".


Quartz (Amethyst, Citrine, Ametrine, Smokey, Rose)

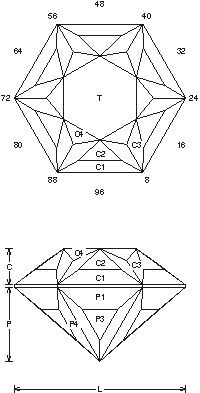

Straight Pedals (QTZ67.JRG)
By Jeff R. Graham
Copyright 1998
76% Light Return
Angles for R.I. = 1.54
55 facets + 6 facets on girdle = 61
6-fold, mirror-image symmetry
96 index
L/W = 1.155 T/W = 0.566 T/L = 0.490
P/W = 0.501 C/W = 0.243
H/W = (P+C)/W+0.02 = 0.764
P/H = 0.655 C/H = 0.319
Vol./W^3 = 0.306

Addition # 3 - This is straight forward to cut. I like to leave the P3 facets frosted for a nice different look. Any good material, 1/2-12cts. Cut in refractive indexes 1.54 to 2.14 (88.1%) with no changes.
