Why Custom Gem Cutting Makes a Difference


commercial vs custom gem cutting

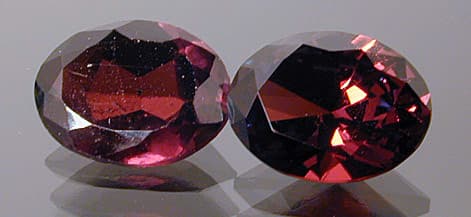

Two rhodolite garnet gems. Commercial cut (left) and custom cut (right). © Dan Stair Custom Gemstones. Used with permission.

The photos in this article compare a commercial-cut stone (left) with one of my custom-cut stones (right). Please note that I treated both stones equally when photographing them. I didn’t “touch up” either one and wiped off both with alcohol prior to taking the pictures. Also, for comparison’s sake, I did the best I could to cut a 6 mm x 8 mm rhodolite garnet of comparable color to the commercial cut stone.

One unfair advantage remained. The commercial-cut stone was a bit more included. It now resides in my fish tank. 🙂

Let’s see how commercial cutting compares to custom gem cutting in four key areas.

Optical Performance

Look at the photo at the start of the article. Notice that light reflects and sparkles in the stone on the right. On the left, you see a large, lighter colored area in the middle of the stone. Since the commercial-cut stone was cut at the wrong angles, light will just pass through this area. This effect, known as windowing or a “fish eye,” will make the stone appear dead inside.

The stone on the right sparkles because the light can’t escape through the bottom of the stone. Light bounces around inside, then back up through the top, often in different colors due to refraction. (Notice the little blue spots).

Polish

Look at the polish on the surfaces of these stones. The one on the right is highly polished. This greatly benefits the gem’s brilliance. The stone on the left probably never received a good polish. Most likely, it was thrown in a bucket or bag with other garnets. After repeated handling, it was probably microscopically scratched and pitted. Even if this stone started out almost flawless, it would now look included or dirty upon close inspection. Another thing, watch for “striations” or parallel lines/streaks when looking at a stone’s polish. These are actually gouges on the stone’s surface.

Meets

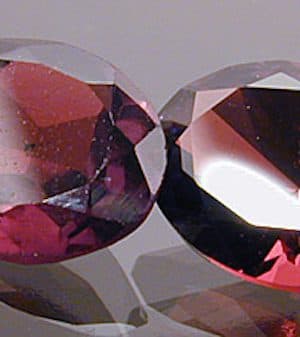

Both the first photo and the one below demonstrate bad meetpoints. In other words, you can see where facets should touch each other but don’t. Look at the closer edge of the table on the commercial stone. You’ll see a facet, a line, then a facet. Those facets should touch each other.

Meetpoints and angles- commercial vs custom gem cutting

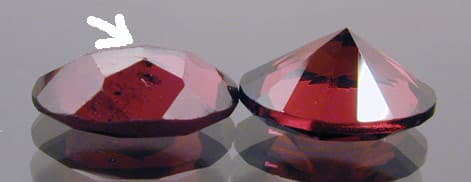

Compare the angles and meets of a commercial-cut gem (left) and a custom-cut gem (right). © Dan Stair Custom Gemstones. Used with permission.

Cutting for Weight?

Oddly enough, the stone on the left was actually cut for weight. The right stone wasn’t. In the photo above, the arrow points to the culet (the point on the bottom of the stone). Since it was cut on too shallow an angle, this created the windowing you can see in the first photo. To achieve the proper optical angle, this stone should have been cut smaller.

The other way to cut a stone for weight is to have the entire pavilion (bottom) of the stone “belly cut.” (That’s the extreme opposite of the commercial stone shown here). Sadly, commercial cutters often cut a really deep stone, then make that last set of crucial culet facets too shallow. As a result, they still cut a window, even though they had plenty of material with which to work. Also, they’ll cut the crown (top of the stone) super shallow. Commercial cutters do this so they can make a bigger belly in the pavilion and, thus, yield a heavier stone.

A Picture is Worth a Thousand Words

This last photo demonstrates, again, the difference between good and bad polishing. What is that saying? A picture is worth a thousand words!

What can you say about the commercial-cut stone? “Yep, it’s a 6 mm x 8 mm faceted rhodolite garnet oval.”

Commercial cutting and custom gem cutting is all the same, right?

Polish - commercial vs custom gem cutting

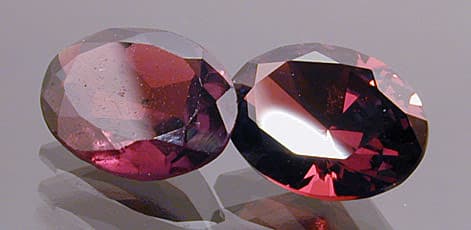

Compare the polish of a commercial-cut gem (left) with a custom cut gem (right). © Dan Stair Custom Gemstones. Used with permission.
